Geometry Help: Dilations Change Length By Scale Factor

Review real example questions for Dilations Change Length By Scale Factor in Geometry.

Question 1 / 10

0 of 10 answered

In the coordinate plane, triangle $ABC$ is dilated about center $O$ with scale factor $k=\tfrac{3}{2}$ to form triangle $A'B'C'$ . How does the length of segment $\overline{AB}$ compare to the length of its image $\overline{A'B'}$ ?

All questions

Question 1

$\overline{A'B'}$ is $\tfrac{2}{3}$ as long as $\overline{AB}$ .
$\overline{A'B'}$ is $\tfrac{3}{2}$ as long as $\overline{AB}$ . (correct answer)
$\overline{A'B'}$ is the same length as $\overline{AB}$ .
$\overline{A'B'}$ is longer than $\overline{AB}$ by $\tfrac{1}{2}$ unit.

Explanation: This question tests understanding of how dilations with scale factor k = 3/2 affect segment lengths. In a dilation, the scale factor multiplies all distances from the center, which means each segment length is multiplied by the scale factor. Since triangle ABC is dilated to form triangle A'B'C', the corresponding segments are AB and A'B'. Applying the scale factor k = 3/2, we get A'B' = (3/2) × AB, which means A'B' is 3/2 as long as AB. This matches answer choice B, confirming that the image segment is 1.5 times the original length. A common misconception (choice A) is to think the reciprocal 2/3 applies, but dilations multiply lengths by the scale factor, not its reciprocal. To solve dilation problems, always multiply the original length by the scale factor to find the image length.

Question 2

A line segment of length x undergoes a dilation with scale factor r to produce a segment of length y. If the same original segment undergoes a dilation with scale factor 3r, what will be the length of the resulting segment in terms of y?

$y + 3$
$y + 3r$
$\frac{y}{3}$
$3y$ (correct answer)

Explanation: When you encounter dilation problems, remember that dilation creates similar figures by multiplying all corresponding lengths by the same scale factor. The key insight is understanding how scale factors relate to each other. Let's establish the relationship from the given information. The original segment of length $x$ dilated by scale factor $r$ produces length $y$ , so: $y = rx$ . This means $r = \frac{y}{x}$ . Now, when the same original segment undergoes dilation with scale factor $3r$ , the new length becomes: $x \cdot (3r) = 3rx$ . Since we know that $rx = y$ , we can substitute: $3rx = 3y$ . Therefore, the resulting segment has length $3y$ . Looking at the wrong answers: Choice A ( $y + 3$ ) incorrectly adds the scale factor instead of multiplying, which isn't how dilations work. Choice B ( $y + 3r$ ) makes the same addition error while also including the variable $r$ , but dilation requires multiplication of the original length. Choice C ( $\frac{y}{3}$ ) represents the opposite relationship—this would be the result if you divided by 3 rather than multiplied, suggesting a misunderstanding of how scale factors greater than 1 affect size. Study tip: In dilation problems, always remember that "scale factor $k$ " means "multiply all lengths by $k$ ." When you see relationships between different scale factors applied to the same original figure, look for proportional reasoning opportunities—if one scale factor produces a certain result, a scale factor three times larger will produce a result three times larger.

Question 3

Segment $\overline{JK}$ is dilated about center $O$ to form $\overline{J'K'}$ . The diagram shows $OJ=4$ units and $OJ'=10$ units. Which claim about length is supported by the diagram?

$J'K'$ is $\tfrac{2}{5}$ as long as $JK$ .
$J'K'$ is $\tfrac{5}{2}$ as long as $JK$ . (correct answer)
$J'K'$ is the same length as $JK$ .
$J'K'$ is longer than $JK$ by $6$ units.

Explanation: This question tests finding the scale factor from given distances and applying it to segment lengths. The diagram shows OJ = 4 units and OJ' = 10 units, so the scale factor k = OJ'/OJ = 10/4 = 5/2. In a dilation, this scale factor applies to all segments, not just distances from the center. Therefore, J'K' = (5/2) × JK, which means J'K' is 5/2 as long as JK, confirming answer B. This represents an enlargement where the image is 2.5 times the original length. A common error (choice A) is to use the reciprocal 2/5, but the scale factor is always the ratio of image distance to original distance from the center. Remember: once you find the scale factor from any corresponding distances, it applies to all segment lengths in the figure.

Question 4

A square with side length s is dilated by scale factor $\frac{2}{3}$ . The resulting square is then dilated by scale factor m. If the final square has side length equal to $\frac{4}{3}$ times the original side length s, what is the value of m?

$\frac{8}{9}$
$\frac{4}{3}$
$\frac{3}{2}$
2 (correct answer)

Explanation: When you encounter problems involving multiple transformations, the key is to track how each transformation affects the dimensions step by step, then work backward from the final result. Let's trace what happens to the square's side length through both dilations. The original square has side length $s$ . After the first dilation by scale factor $\frac{2}{3}$ , the new side length becomes $s \cdot \frac{2}{3} = \frac{2s}{3}$ . Next, this resulting square is dilated by scale factor $m$ , giving a final side length of $\frac{2s}{3} \cdot m = \frac{2sm}{3}$ . We're told this final side length equals $\frac{4}{3}$ times the original side length, so: $\frac{2sm}{3} = \frac{4s}{3}$ Solving for $m$ : multiply both sides by $\frac{3}{2s}$ to get $m = \frac{4s}{3} \cdot \frac{3}{2s} = \frac{4}{2} = 2$ . Looking at the wrong answers: Choice A ( $\frac{8}{9}$ ) likely comes from incorrectly multiplying the two scale factors together. Choice B ( $\frac{4}{3}$ ) represents the ratio of final to original side length, not the second scale factor. Choice C ( $\frac{3}{2}$ ) is the reciprocal of the first scale factor, suggesting confusion about which transformation to undo. Remember: when multiple transformations are applied sequentially, set up equations that track the cumulative effect, then solve for the unknown parameter. Don't assume you need to multiply or divide the given scale factors directly.

Question 5

Parallelogram JKLM undergoes a dilation with center at vertex J and scale factor $\frac{3}{5}$ . In the original parallelogram, JK = 25 units and JM = 15 units. What is the perimeter of the image parallelogram J'K'L'M'?

72 units
56 units
48 units (correct answer)
80 units

Explanation: When you encounter a dilation problem, remember that dilation scales all lengths by the same factor while preserving shape. The key insight is that if each side length changes by the scale factor, the perimeter changes by that same factor. In the original parallelogram JKLM, you're given JK = 25 units and JM = 15 units. Since opposite sides of a parallelogram are equal, the four sides are: JK = 25, KL = 15, LM = 25, and MJ = 15. The original perimeter is $25 + 15 + 25 + 15 = 80$ units. Under a dilation with scale factor $\frac{3}{5}$ , each side length gets multiplied by $\frac{3}{5}$ . The new side lengths become: $25 \times \frac{3}{5} = 15$ and $15 \times \frac{3}{5} = 9$ . So the image parallelogram has sides of 15, 9, 15, and 9 units, giving a perimeter of $15 + 9 + 15 + 9 = 48$ units. Choice A (72 units) represents the error of multiplying the original perimeter by $\frac{9}{10}$ instead of $\frac{3}{5}$ . Choice B (56 units) might result from incorrectly calculating the new side lengths or adding them wrong. Choice D (80 units) is the original perimeter—this would be your answer if you forgot that dilation changes all measurements. Study tip: For any dilation, the perimeter of the image equals the original perimeter times the scale factor. This saves time: $80 \times \frac{3}{5} = 48$ units directly.

Question 6

A rectangle undergoes two successive dilations. First, it is dilated by a scale factor of 2, then the resulting rectangle is dilated by a scale factor of $\frac{1}{3}$ . If the original rectangle had a diagonal of length 5 units, what is the length of the diagonal after both transformations?

$\frac{5}{6}$ units
$\frac{10}{3}$ units (correct answer)
$\frac{5}{3}$ units
$\frac{15}{2}$ units

Explanation: Successive dilations multiply their scale factors: 2 × (1/3) = 2/3. The diagonal length becomes 5 × (2/3) = 10/3 units. Choice A incorrectly subtracts scale factors (2 - 1/3 = 5/3, then 5 × 1/3 = 5/3, then divides by 3). Choice C uses only the second scale factor (5 × 1/3). Choice D incorrectly adds scale factors (2 + 1/3 = 7/3, then 5 × 7/3 ÷ 2).

Question 7

Triangle ABC is dilated by a scale factor of $\frac{3}{4}$ to create triangle A'B'C'. If the perimeter of triangle ABC is 24 units and side AB has length 8 units, what is the length of side A'B' in triangle A'B'C'?

6 units (correct answer)
8 units
18 units
32 units

Explanation: In a dilation, all lengths are multiplied by the scale factor. Side AB has length 8 units, so A'B' = 8 × (3/4) = 6 units. Choice B incorrectly assumes the length stays the same. Choice C incorrectly applies the scale factor to the perimeter instead (24 × 3/4 = 18). Choice D incorrectly uses the reciprocal scale factor (8 × 4 = 32).

Question 8

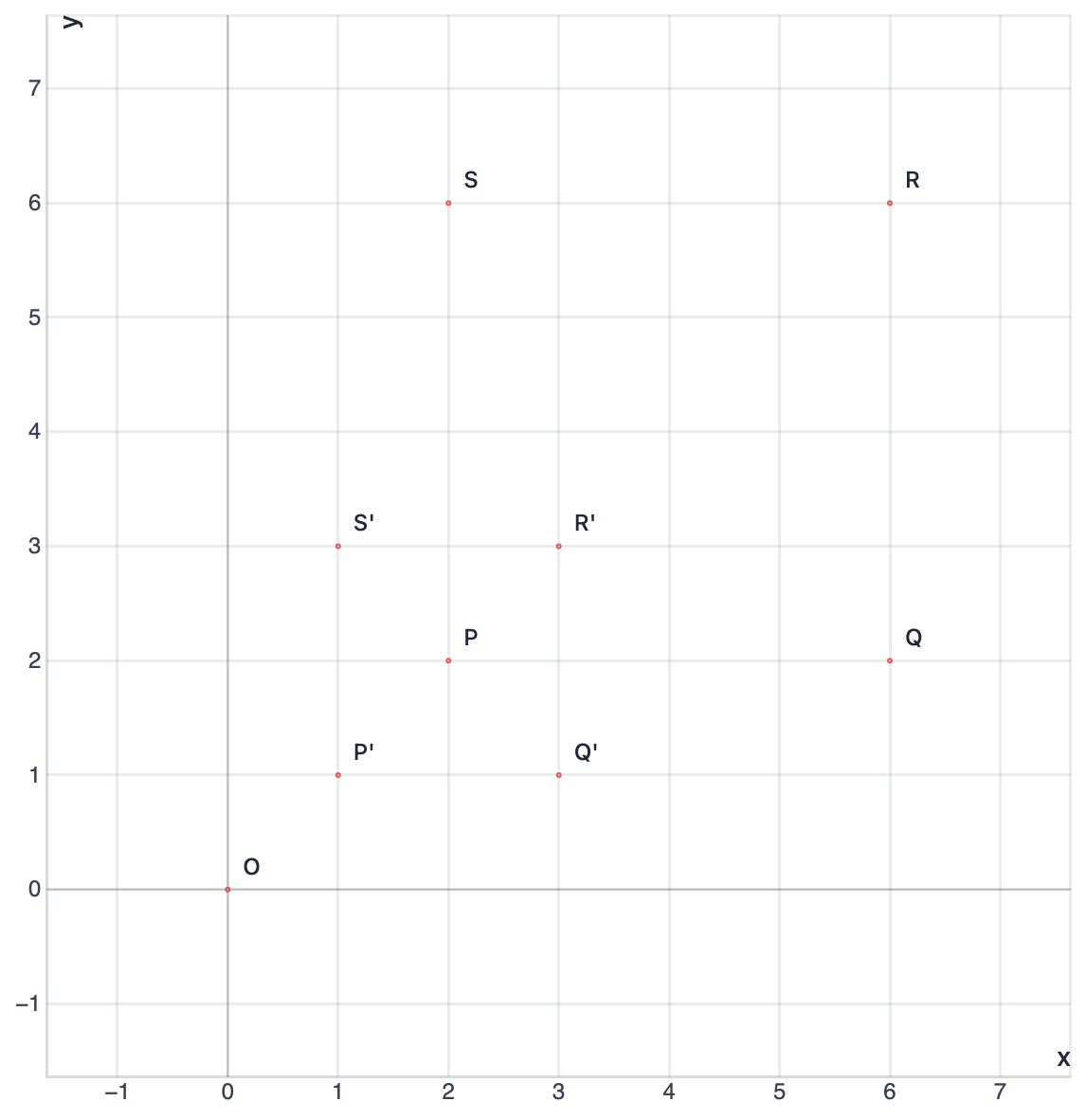

Quadrilateral $PQRS$ is dilated about center $O$ with scale factor $k=\tfrac{1}{2}$ to form $P'Q'R'S'$ . Which statement correctly describes the effect of the dilation on segment length?

Each image segment is $\tfrac{1}{2}$ the length of the corresponding original segment. (correct answer)
Each image segment is $2$ times the length of the corresponding original segment.
Each image segment is the same length as the corresponding original segment.
Each image segment is shorter than the original by $\tfrac{1}{2}$ unit.

Explanation: This problem examines dilations with scale factor k = 1/2, which creates a reduction. When a figure is dilated, every segment length is multiplied by the scale factor to produce the corresponding image segment length. For quadrilateral PQRS dilated to P'Q'R'S', each image segment equals the original segment times 1/2. This means P'Q' = (1/2) × PQ, Q'R' = (1/2) × QR, and so on for all sides. Therefore, each image segment is 1/2 the length of the corresponding original segment, confirming answer A. Students might confuse this with doubling (choice B), but a scale factor less than 1 always produces a smaller image. Remember: multiply original lengths by the scale factor to find image lengths in any dilation.

Question 9

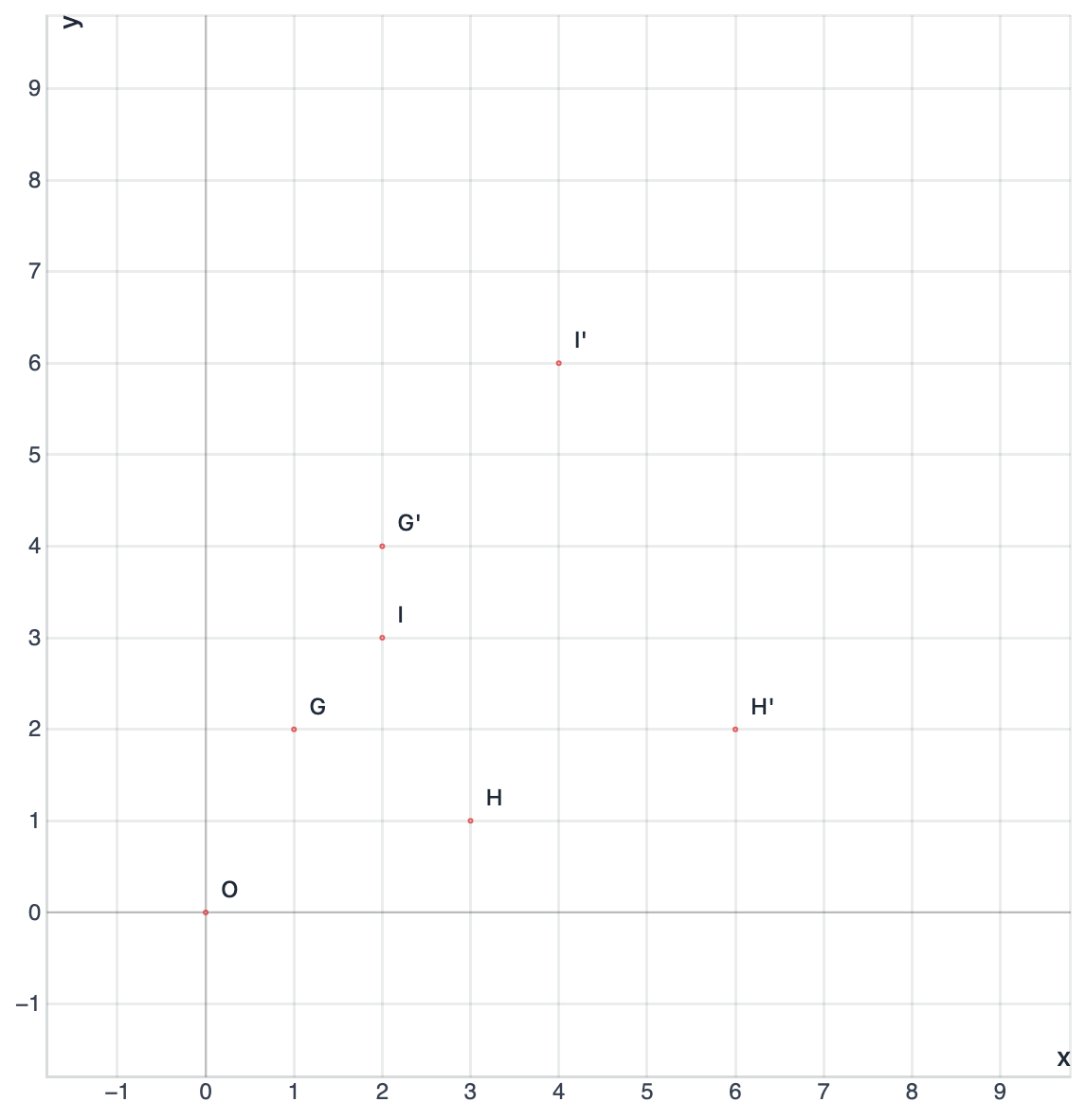

Triangle $GHI$ is dilated about center $O$ with scale factor $k=2$ to form triangle $G'H'I'$ . Which conclusion follows from the dilation shown?

Each image side is $\tfrac{1}{2}$ the length of the corresponding original side.
Each image side is $2$ times the length of the corresponding original side. (correct answer)
Each image side is the same length as the corresponding original side.
Each image side is longer than the original by $2$ units.

Explanation: This problem involves a dilation with scale factor k = 2, which creates an enlargement. In dilations, the scale factor determines how segment lengths change: each image segment equals the original segment multiplied by the scale factor. For triangle GHI dilated to G'H'I', we have G'H' = 2 × GH, H'I' = 2 × HI, and G'I' = 2 × GI. This means each image side is 2 times the length of the corresponding original side, confirming answer B. Students might mistakenly think k = 2 means adding 2 units (choice D), but dilations multiply lengths, not add to them. The key strategy is to recognize that scale factor k means "multiply all lengths by k" to find the image measurements.

Question 10

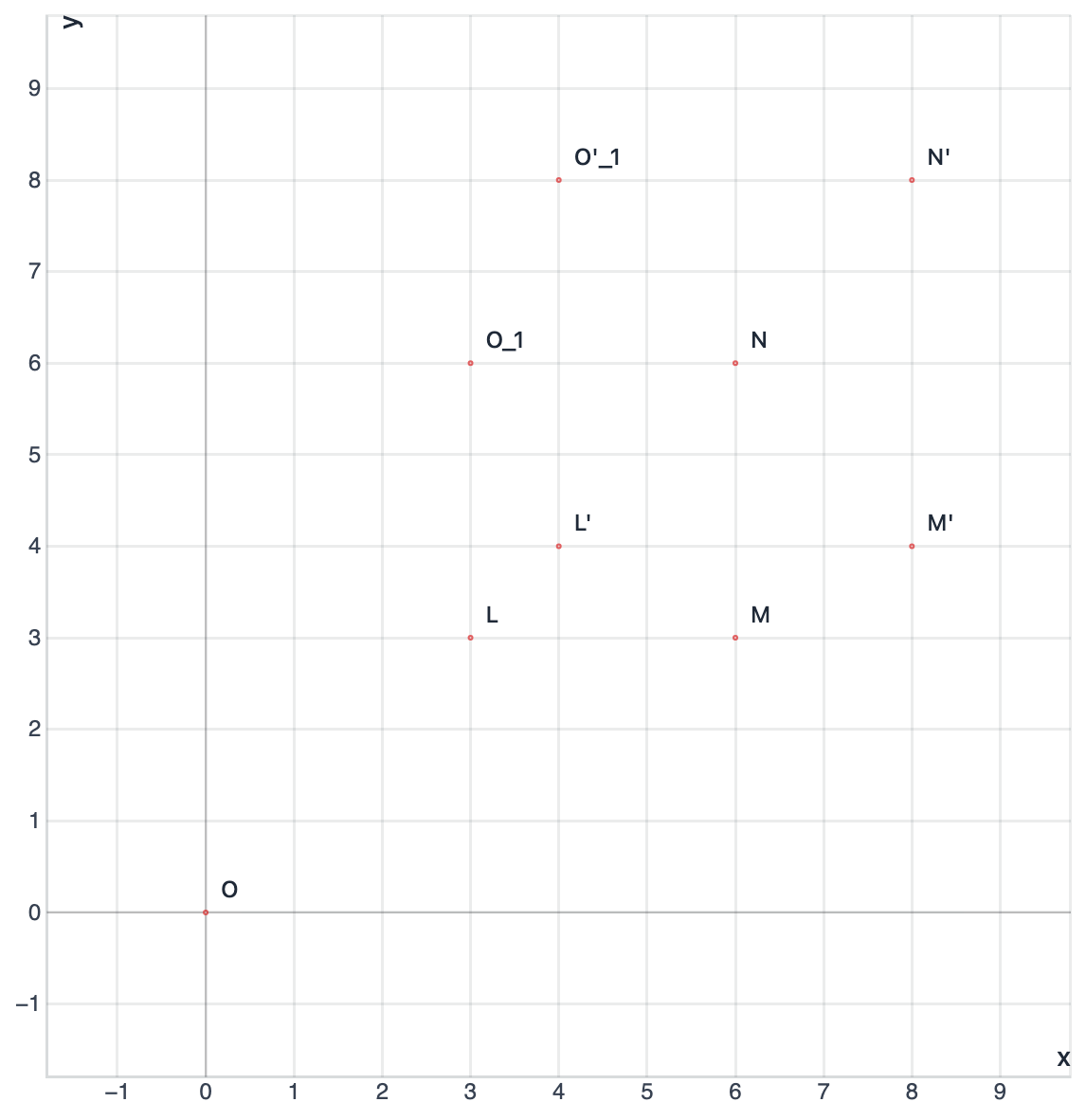

Rectangle $LMNO$ is dilated about center $O$ with scale factor $k=\tfrac{4}{3}$ to form $L'M'N'O'$ . Which description uses the scale factor correctly?

Each image side is $\tfrac{4}{3}$ times the length of the corresponding original side. (correct answer)
Each image side is $\tfrac{3}{4}$ times the length of the corresponding original side.
Each image side is the same length as the corresponding original side.
Each image side is longer than the original by $\tfrac{1}{3}$ unit.

Explanation: This problem examines dilations with scale factor k = 4/3, which produces an enlargement. When a rectangle is dilated, every side length is multiplied by the scale factor to create the corresponding image side. For rectangle LMNO dilated to L'M'N'O', each image side equals the original side times 4/3. This means L'M' = (4/3) × LM, M'N' = (4/3) × MN, and so on, confirming that each image side is 4/3 times the length of the corresponding original side (answer A). Students might confuse this with the reciprocal 3/4 (choice B), but k = 4/3 means multiply by 4/3, not 3/4. The misconception in choice D treats dilation as addition rather than multiplication. To solve dilation problems correctly, always multiply lengths by the given scale factor.
