Geometry · Learn by Concept

Geometry Help: Deriving The Triangle Area Formula

Review real example questions for Deriving The Triangle Area Formula in Geometry.

Question 1 / 10

0 of 10 answered

Triangle $\triangle WXY$ is shown in the plane (not necessarily right). Side $\overline{WX}$ is labeled $a$ and side $\overline{WY}$ is labeled $b$ . The included angle at $W$ is labeled $C$ (so $C=\angle XWY$ ). A dashed altitude from $Y$ meets $\overline{WX}$ at $Z$ , with $\overline{YZ}\perp\overline{WX}$ . Which expression represents the area of $\triangle WXY$ ?

All questions

Question 1

$A=\tfrac12 ab\sin(C)$ (correct answer)
$A=\tfrac12 ab\cos(C)$
$A=\tfrac12 ab\sin(\angle WYX)$
$A=ab\sin(C)$

Explanation: The skill involves deriving the area of a triangle using trigonometry with two sides and the included angle. The area of a triangle is given by one-half base times height. When an altitude is dropped from vertex Y to side WX, the height can be expressed using the sine of angle C, as the height equals side b times sin(C) in the right triangle formed. Thus, the area formula derives as one-half times a times b times sin(C). This justifies the correct expression representing the area with sine of C. A common distractor misconception is substituting another angle like at X, which alters the trigonometric relationship. To transfer this strategy, always multiply half the product of the two sides by the sine of the included angle between them.

Question 2

Triangle $\triangle PQR$ is shown in the plane (not necessarily right). The side $\overline{PQ}$ is labeled $a$ and the side $\overline{PR}$ is labeled $b$ . The included angle at $P$ is labeled $C$ (so $C=\angle QPR$ ). A dashed altitude from $R$ meets $\overline{PQ}$ at $S$ , with $\overline{RS}\perp\overline{PQ}$ . Which expression uses the included angle correctly to give the area of $\triangle PQR$ ?

$A=\tfrac12 ab\sin(C)$ (correct answer)
$A=\tfrac12 ab\sin(\angle PRQ)$
$A=\tfrac12 ab\cos(C)$
$A=ab\sin(C)$

Explanation: The skill involves deriving the area of a triangle using trigonometry with two sides and the included angle. The area of a triangle is given by one-half base times height. When an altitude is dropped from vertex R to side PQ, the height can be expressed using the sine of angle C, as the height equals side b times sin(C) in the right triangle formed. Thus, the area formula derives as one-half times a times b times sin(C). This justifies the correct expression that uses sin(C) for the included angle at P. A common distractor misconception is replacing the included angle with another angle like at Q, which does not correspond to the height calculation. To transfer this strategy, always multiply half the product of the two sides by the sine of the included angle between them.

Question 3

In triangle $UVW$ , sides $UV$ and $UW$ are labeled $a$ and $b$ , and the included angle $\angle VUW$ is labeled $C$ . A dashed altitude from $W$ is drawn to side $UV$ . Which expression represents the area of triangle $UVW$ ?

$A=\tfrac12 ab\cos(C)$
$A=\tfrac12 ab\sin(C)$ (correct answer)
$A=\tfrac12 ab\sin(W)$
$A=ab\sin(C)$

Explanation: The area of a triangle can be derived using trigonometry when two sides and the included angle are known. The standard formula for the area of a triangle is one-half times base times height. In this setup, if we consider side a as the base, the height from the opposite vertex to this base can be expressed as b times the sine of the included angle C. Therefore, the area is one-half times a times (b sin C), which simplifies to (1/2)ab sin C. This justifies the expression A = (1/2)ab sin C as the correct one for the area of triangle UVW. A common misconception is forgetting the one-half, resulting in ab sin C, which doubles the actual area. To transfer this strategy, always use the sine of the included angle between the two sides and multiply by half their product.

Question 4

A non-right triangle $\triangle DEF$ is shown. Sides $DE=a$ and $DF=b$ form the included angle at $D$ , labeled $C$ . A dashed altitude from $E$ meets side $DF$ at a right angle. Which expression represents the area of the triangle?

$A=\tfrac12 ab\sin(C)$ (correct answer)
$A=\tfrac12 ab\sin(\angle E)$
$A=\tfrac12 ab\cos(C)$
$A=ab\sin(C)$

Explanation: This question tests the derivation of triangle area using two sides and their included angle. The area of a triangle equals half the product of base times height. In triangle DEF with sides DE = a and DF = b forming included angle C at vertex D, we drop an altitude from E to side DF. The height of this altitude equals the length of side DE times the sine of angle C, giving height = a·sin(C). Using DF as the base (length b), the area becomes A = ½·b·(a·sin(C)) = ½ab·sin(C). The correct formula includes the ½ factor and uses sine of the included angle C at vertex D, not angle E as suggested in choice B. A common error is using cosine instead of sine, which would give the adjacent side length rather than the perpendicular height. When finding area with two sides and their included angle, always use A = ½ab·sin(C).

Question 5

A right triangle has legs of length $a$ and $b$ , and the angle opposite leg $a$ measures $\theta$ . If the area of this triangle is 24 square units and $\tan \theta = \frac{3}{4}$ , what is the length of the hypotenuse?

$10$ units (correct answer)
$8$ units
$12$ units
$6\sqrt{5}$ units

Explanation: From tan θ = 3/4, we have a/b = 3/4, so a = 3k and b = 4k for some positive k. The area is (1/2)ab = (1/2)(3k)(4k) = 6k² = 24, so k² = 4 and k = 2. Therefore a = 6 and b = 8. The hypotenuse is √(6² + 8²) = √(36 + 64) = √100 = 10. Choice B gives the length of leg b. Choice C assumes k = 2 incorrectly in the area formula. Choice D results from incorrectly using the Pythagorean theorem.

Question 6

Triangle $\triangle GHI$ is shown with sides $\overline{GH}=a$ and $\overline{GI}=b$ , and the included angle at $G$ is labeled $C$ (so $C=\angle HGI$ ). A dashed altitude from $I$ meets $\overline{GH}$ at $J$ with $\overline{IJ}\perp\overline{GH}$ . Which expression uses the included angle correctly to give the area of $\triangle GHI$ ?

$A=\tfrac12 ab\cos(C)$
$A=\tfrac12 ab\sin(C)$ (correct answer)
$A=ab\sin(C)$
$A=\tfrac12 ab\sin(\angle GIH)$

Explanation: The skill involves deriving triangle area using trigonometry with two sides and included angle. Area is one-half the product of base and height. For base a, height from I to GH is b sin(C), employing sine. This derives A = (1/2) a b sin(C). The expression is justified as it properly uses angle C. Misconception: substituting cosine, which relates to base projection not height. Transfer by focusing on sine of the included angle for area.

Question 7

In $\triangle A'B'C'$ , sides $A'B'=a$ and $A'C'=b$ form the included angle at $A'$ , labeled $C$ . A dashed altitude from $C'$ meets side $A'B'$ at a right angle. Which expression uses the included angle correctly?

$A=\tfrac12 ab\cos(C)$
$A=ab\sin(C)$
$A=\tfrac12 ab\sin(C)$ (correct answer)
$A=\tfrac12 b^2\sin(C)$

Explanation: This problem tests understanding of the triangle area formula using two sides and their included angle. The area of a triangle equals one-half the product of base and height. For triangle A'B'C' with sides A'B' = a and A'C' = b forming included angle C at vertex A', we drop an altitude from C' to side A'B'. The height of this perpendicular equals the length of side A'C' times the sine of angle C, which gives height = b·sin(C). Taking A'B' as the base (length a), the area formula becomes A = ½·a·(b·sin(C)) = ½ab·sin(C). The correct expression includes both the ½ factor and sine of the included angle. Using cosine would give the adjacent side projection rather than the perpendicular height, while omitting ½ would double the actual area. For triangles with two known sides and their included angle, use A = ½ab·sin(C).

Question 8

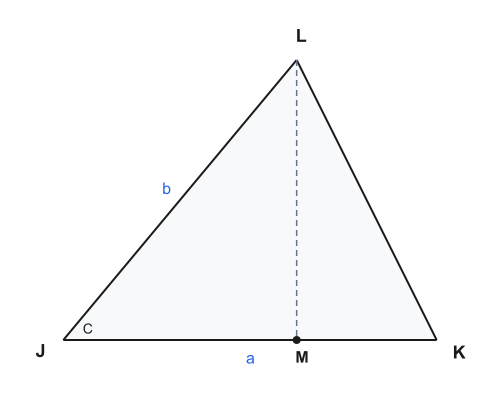

In the diagram, $\triangle JKL$ is an oblique triangle. Side $\overline{JK}$ is labeled $a$ and side $\overline{JL}$ is labeled $b$ . The included angle at $J$ is labeled $C$ (so $C=\angle KJL$ ). A dashed altitude from $L$ meets $\overline{JK}$ at $M$ , and $\overline{LM}\perp\overline{JK}$ . Which conclusion follows from dropping the altitude and gives the area of $\triangle JKL$ ?

$A=\tfrac12 ab\sin(C)$ (correct answer)
$A=\tfrac12 ab\sin(\angle JLK)$
$A=\tfrac12 ab\cos(C)$
$A=ab\sin(C)$

Explanation: The skill involves deriving the area of a triangle using trigonometry with two sides and the included angle. The area of a triangle is given by one-half base times height. When an altitude is dropped from vertex L to side JK, the height can be expressed using the sine of angle C, as the height equals side b times sin(C) in the right triangle formed. Thus, the area formula derives as one-half times a times b times sin(C). This justifies the correct expression that incorporates the sine of the included angle at J. A common distractor misconception is using cosine instead of sine, confusing it with projections along the base. To transfer this strategy, always multiply half the product of the two sides by the sine of the included angle between them.

Question 9

A surveyor measures the angle of elevation to the top of a building from two points on level ground. From point $A$ , which is 100 feet from the base of the building, the angle of elevation is $53°$ . From point $B$ , which is 150 feet from the base on the opposite side of the building, the angle of elevation is $37°$ . Assuming the ground is level and both measurements are accurate, what can be concluded about the building's height?

The building height is approximately 133 feet using both measurements consistently
The measurements are inconsistent; the building cannot have the same height from both perspectives (correct answer)
The building height is exactly 120 feet based on the average of both calculations
The building height varies between 113 feet and 133 feet depending on measurement location

Explanation: From point A: height = 100 tan(53°) ≈ 100(1.327) ≈ 133 feet. From point B: height = 150 tan(37°) ≈ 150(0.754) ≈ 113 feet. Since a building has a fixed height, these measurements are inconsistent, indicating measurement error or the ground is not level. Choice A incorrectly assumes one measurement is correct. Choice C incorrectly averages incompatible measurements. Choice D incorrectly suggests the height actually varies.

Question 10

In the coordinate plane, right triangle $ABC$ has vertices at $A(0,0)$ , $B(8,0)$ , and $C(0,6)$ . Point $D$ is chosen on the hypotenuse $BC$ such that when triangle $ACD$ is reflected across the $y$ -axis, the reflected triangle has the same area as triangle $ABD$ . What are the coordinates of point $D$ ?

$(3, 4)$
$(2, 4.5)$
$(4, 3)$ (correct answer)
$(5, 2.25)$

Explanation: When you encounter coordinate geometry problems involving reflections and equal areas, start by setting up the coordinate relationships and using area formulas systematically. First, let's find the equation of line $BC$ . With $B(8,0)$ and $C(0,6)$ , the slope is $\frac{6-0}{0-8} = -\frac{3}{4}$ , so the line equation is $y = -\frac{3}{4}x + 6$ . Since point $D$ lies on $BC$ , we can write $D$ as $(x, -\frac{3}{4}x + 6)$ . When triangle $ACD$ is reflected across the $y$ -axis, point $A(0,0)$ stays fixed, $C(0,6)$ stays fixed, but $D(x, -\frac{3}{4}x + 6)$ becomes $D'(-x, -\frac{3}{4}x + 6)$ . Using the coordinate area formula $\frac{1}{2}|x_1(y_2-y_3) + x_2(y_3-y_1) + x_3(y_1-y_2)|$ :

Area of triangle $ABD = \frac{1}{2} \cdot 8 \cdot (-\frac{3}{4}x + 6) = 4(-\frac{3}{4}x + 6) = -3x + 24$
Area of reflected triangle $ACD' = \frac{1}{2} \cdot (-x) \cdot 6 = -3x$

Setting these equal:

-3x = -3x + 24

, which gives us

0 = 24

. This approach reveals we need the absolute values:

3x = 3x + 24

becomes

3x = 24

, so

x = 4

. Therefore

D = (4, -\frac{3}{4} \cdot 4 + 6) = (4, 3)

, which is choice C. Choice A

(3,4)

and B

(2,4.5)

don't satisfy the line equation for

BC

. Choice D

(5,2.25)

lies on

BC

but doesn't satisfy the equal area condition. Strategy tip: In reflection problems, carefully track which coordinates change and use the coordinate area formula to set up your equation systematically.
