AA Criterion from Similarity Transformations
Help Questions
Geometry › AA Criterion from Similarity Transformations

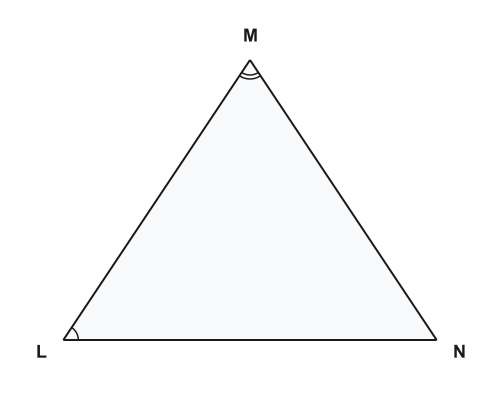

In the plane, triangles $\triangle LMN$ and $\triangle QRS$ are drawn. The diagram marks $\angle L \cong \angle Q$ with one arc and $\angle M \cong \angle R$ with two arcs. No side lengths are shown, and the diagram is not drawn to scale. Which statement proves the triangles are similar?
The triangles are congruent because two corresponding angles are marked congruent.
The triangles are similar because they look like the same shape in the diagram.
The triangles are similar because $LM=QR$ and $MN=RS$.
The triangles are similar by AA because two pairs of corresponding angles are marked congruent.
Explanation
The skill being assessed is the AA criterion for triangle similarity. The AA criterion states that if two pairs of corresponding angles in two triangles are congruent, then the triangles are similar, which can be verified through similarity transformations preserving angles. In this problem, the marked angles are angle L congruent to angle Q with one arc and angle M congruent to angle R with two arcs. Applying the AA criterion, triangle LMN is similar to triangle QRS with correspondence L to Q, M to R, and N to S. Because the triangles are similar, their corresponding sides are proportional, meaning the ratios of the lengths of corresponding sides are equal, but the sides themselves are not necessarily equal in length. A common misconception is to rely on visual appearance for similarity without confirming angle congruences, but diagrams not to scale require explicit markings. When approaching similar problems, always check for matching angles first to establish similarity before comparing side lengths or ratios.

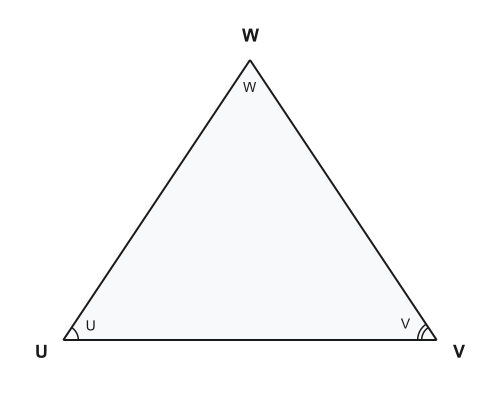

A dilation followed by a rotation is used to map triangle $\triangle UVW$ to triangle $\triangle U'V'W'$. In the diagram, $\angle U \cong \angle U'$ is marked with one arc and $\angle V \cong \angle V'$ is marked with two arcs. No side lengths are labeled, and the diagram is not drawn to scale. Which conclusion about the triangles is valid?
$\triangle UVW \sim \triangle V'U'W'$ because $\angle U \cong \angle V'$ and $\angle V \cong \angle U'$.
$UV=U'V'$ because $\angle U \cong \angle U'$ and $\angle V \cong \angle V'$.
$\triangle UVW \cong \triangle U'V'W'$ because a rotation preserves lengths.
$\triangle UVW \sim \triangle U'V'W'$ by AA, so $\dfrac{UV}{U'V'}=\dfrac{VW}{V'W'}$.
Explanation
The skill being assessed is the AA criterion for triangle similarity. The AA criterion states that if two pairs of corresponding angles in two triangles are congruent, then the triangles are similar, as a dilation followed by a rotation can map one to the other while maintaining angle measures. In this problem, the marked angles are angle U congruent to angle U' with one arc and angle V congruent to angle V' with two arcs. Applying the AA criterion, triangle UVW is similar to triangle U'V'W' with correspondence U to U', V to V', and W to W'. Because the triangles are similar, their corresponding sides are proportional, meaning the ratios of the lengths of corresponding sides are equal, but the sides themselves are not necessarily equal in length. A common misconception is to assume a rotation alone implies equal sides, but the dilation component allows for different scales. When approaching similar problems, always check for matching angles first to establish similarity before comparing side lengths or ratios.

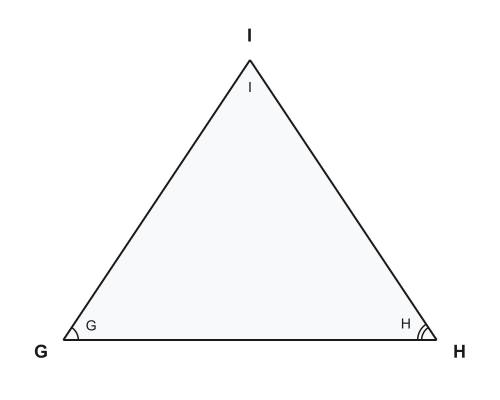

Two triangles $\triangle GHI$ and $\triangle JKL$ are shown. Angles $\angle G$ and $\angle J$ are marked congruent with one arc, and angles $\angle H$ and $\angle K$ are marked congruent with two arcs. No side lengths are labeled, and the diagram is not drawn to scale. Which claim about side lengths must be true?
$\dfrac{GI}{JL}=1$
$\dfrac{GH}{JK}=\dfrac{HI}{KL}$
$GH=JK$
$\dfrac{GH}{HI}=\dfrac{JK}{JL}$
Explanation
The skill being assessed is the AA criterion for triangle similarity. The AA criterion states that if two pairs of corresponding angles in two triangles are congruent, then the triangles are similar, as this allows for a similarity transformation to map the figures. In this problem, the marked angles are $\angle G$ congruent to $\angle J$ with one arc and $\angle H$ congruent to $\angle K$ with two arcs. Applying the AA criterion, $\triangle GHI$ is similar to $\triangle JKL$ with correspondence G to J, H to K, and I to L. Because the triangles are similar, their corresponding sides are proportional, meaning the ratios of the lengths of corresponding sides are equal, but the sides themselves are not necessarily equal in length. A common misconception is to equate non-corresponding side ratios, such as comparing $GH$ to $HI$ with $JK$ to $JL$, which ignores the proper vertex mapping. When approaching similar problems, always check for matching angles first to establish similarity before comparing side lengths or ratios.
In the diagram, triangle $\triangle A'B'C'$ appears to be a transformed image of triangle $\triangle ABC$. Angles $\angle A$ and $\angle A'$ are marked congruent with one arc, and angles $\angle B$ and $\angle B'$ are marked congruent with two arcs. No side lengths are shown, and the diagram is not drawn to scale. Which criterion justifies triangle similarity?
Congruence, because a transformation image must preserve side lengths.
AAA, because all three angles must be marked to claim similarity.
SSA, because two angles imply a matching side.
AA, because two pairs of corresponding angles are marked congruent.
Explanation
The skill being assessed is the AA criterion for triangle similarity. The AA criterion states that if two pairs of corresponding angles in two triangles are congruent, then the triangles are similar, as a similarity transformation can align the figures while preserving angle measures. In this problem, the marked angles are angle A congruent to angle A' with one arc and angle B congruent to angle B' with two arcs. Applying the AA criterion, triangle ABC is similar to triangle A'B'C' with correspondence A to A', B to B', and C to C'. Because the triangles are similar, their corresponding sides are proportional, meaning the ratios of the lengths of corresponding sides are equal, but the sides themselves are not necessarily equal in length. A common misconception is to require all three angles to be marked for similarity, but since the third angles are automatically congruent by the triangle angle sum, two suffice. When approaching similar problems, always check for matching angles first to establish similarity before comparing side lengths or ratios.

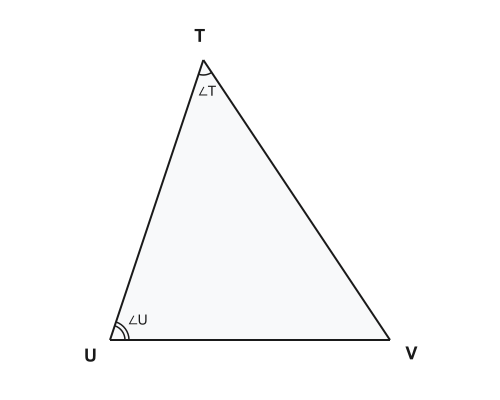

In the diagram, triangles $\triangle TUV$ and $\triangle WXY$ are drawn in the plane. Angle markings show $\angle T \cong \angle W$ with one arc and $\angle U \cong \angle X$ with two arcs. No side lengths are labeled or marked, and the diagram is not drawn to scale. Which relationship follows from the angle markings?
$\triangle TUV \sim \triangle WXY$ by AA, so $\dfrac{TV}{WY}=\dfrac{UV}{XY}$.
$TU=WX$ because corresponding angles are congruent.
$\triangle TUV \cong \triangle WXY$ because two angles are marked congruent.
$\triangle TUV \sim \triangle WYX$ by AA because $\angle T \cong \angle W$ and $\angle U \cong \angle Y$.
Explanation
The skill being assessed is the AA criterion for triangle similarity. The AA criterion states that if two pairs of corresponding angles in two triangles are congruent, then the triangles are similar, as this permits a similarity transformation to map one onto the other. In this problem, the marked angles are angle T congruent to angle W with one arc and angle U congruent to angle X with two arcs. Applying the AA criterion, triangle TUV is similar to triangle WXY with correspondence T to W, U to X, and V to Y. Because the triangles are similar, their corresponding sides are proportional, meaning the ratios of the lengths of corresponding sides are equal, but the sides themselves are not necessarily equal in length. A common misconception is to misalign correspondences, such as linking angle U to angle Y instead of X, leading to incorrect similarity statements. When approaching similar problems, always check for matching angles first to establish similarity before comparing side lengths or ratios.
Two triangles $\triangle EFG$ and $\triangle HIJ$ are shown in the plane. Angle markings indicate $\angle F \cong \angle I$ and $\angle G \cong \angle J$. Which criterion justifies triangle similarity?
SSA, because two angles determine a side proportion.
Measurement, because the diagram shows the triangles have the same area.
Congruence, because matching angles make the triangles identical.
AA, because two pairs of corresponding angles are congruent.
Explanation
This question directly asks which criterion justifies triangle similarity given angle information. The AA (Angle-Angle) criterion states that if two angles of one triangle are congruent to two angles of another triangle, then the triangles are similar. The problem states that ∠F ≅ ∠I and ∠G ≅ ∠J, which gives us exactly two pairs of congruent corresponding angles. This matches the requirements of the AA criterion perfectly, establishing that △EFG ∼ △HIJ. Choice B mentions SSA, which is not a valid similarity criterion and doesn't apply to angle-only information. Choice C incorrectly suggests congruence when angle information alone can only establish similarity. When identifying similarity criteria from given information, AA requires exactly two pairs of congruent angles and is the only criterion that uses angle information exclusively.
Two triangles $\triangle PQR$ and $\triangle STU$ are shown. The angle arcs indicate $\angle P \cong \angle S$ and $\angle Q \cong \angle T$. Which conclusion about the triangles is valid?
$\triangle PQR \sim \triangle STU$ by AA, so corresponding sides are proportional.
$\triangle PQR \sim \triangle STU$ because all three corresponding angles are congruent as drawn.
$PR=SU$ because the marked angles force equal opposite sides.
$\triangle PQR$ and $\triangle STU$ must be congruent because two angles are congruent.
Explanation
This problem requires applying the AA criterion for triangle similarity. The AA criterion establishes that when two angles of one triangle are congruent to two angles of another triangle, the triangles must be similar. Given that ∠P ≅ ∠S and ∠Q ≅ ∠T, we have two pairs of congruent corresponding angles. This proves that △PQR ∼ △STU by the AA criterion, which means the triangles have the same shape with proportional sides. Similar triangles have corresponding sides that are proportional, not equal, so we cannot conclude that PR = SU or that the triangles are congruent. Choice B incorrectly assumes congruence from two angle pairs, while choice C wrongly claims equal sides from angle congruence alone. When using AA similarity, remember that two angle pairs guarantee similarity and proportional sides, never congruence or equal sides.
Two triangles $\triangle A_1B_1C_1$ and $\triangle A_2B_2C_2$ are shown. The angle arcs indicate $\angle B_1 \cong \angle B_2$ and $\angle C_1 \cong \angle C_2$. Which relationship follows from the angle markings?
$A_1B_1=A_2B_2$ because corresponding angles are congruent.
$\triangle A_1B_1C_1 \sim \triangle A_2B_2C_2$, so $\frac{A_1B_1}{A_2B_2}=\frac{B_1C_1}{B_2C_2}$.
$\triangle A_1B_1C_1 \cong \triangle A_2B_2C_2$ because two angles match.
$\triangle A_1B_1C_1 \sim \triangle A_2B_2C_2$ because $\angle B_1$ matches $\angle C_2$ and $\angle C_1$ matches $\angle B_2$.
Explanation
This question tests understanding of the AA criterion for triangle similarity. The AA criterion states that if two angles of one triangle are congruent to two angles of another triangle, then the triangles are similar. The angle markings show ∠B₁ ≅ ∠B₂ and ∠C₁ ≅ ∠C₂, providing two pairs of congruent corresponding angles. By the AA criterion, this proves △A₁B₁C₁ ∼ △A₂B₂C₂, which means the triangles have the same shape with proportional sides. Similar triangles have the property that ratios of corresponding sides are equal, so A₁B₁/A₂B₂ = B₁C₁/B₂C₂ = A₁C₁/A₂C₂. Choice B incorrectly claims congruence when we only have similarity, while choice C wrongly assumes equal sides from angle congruence. Choice D has incorrect angle correspondence. To apply AA correctly, match corresponding vertices and verify two angle pairs before concluding proportional sides.

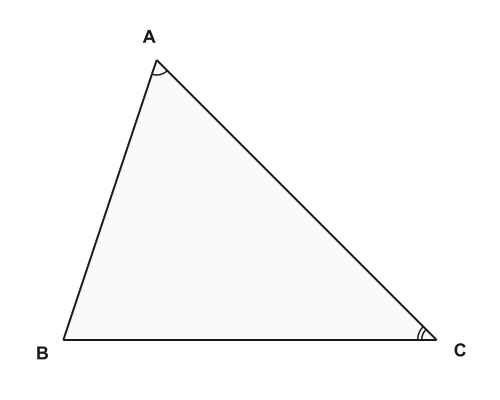

In the diagram, $\triangle ABC$ and $\triangle A'B'C'$ are drawn. Angle markings show $\angle A \cong \angle A'$ (single arc) and $\angle C \cong \angle C'$ (double arc). No side lengths are labeled, and no sides are marked congruent. The diagram is not drawn to scale.
Which criterion justifies triangle similarity?
SSS, because the triangles appear to have proportional sides.
AA, because two pairs of corresponding angles are marked congruent.
AAA, because all three angles are marked congruent.
ASA, because two angles and a side are marked.
Explanation
The AA criterion is a key method for proving triangle similarity. If two angles of one triangle are congruent to two angles of another triangle, the triangles are similar. In this diagram, angle A is marked congruent to angle A' with a single arc, and angle C is marked congruent to angle C' with a double arc. Therefore, by the AA similarity criterion, triangle ABC is similar to triangle A'B'C'. Similar triangles have corresponding sides that are proportional, meaning their ratios are equal, but the sides themselves are not necessarily equal in length. A common misconception is to use AAA as a criterion, but since the third angle is automatically equal, AA is sufficient for similarity. To apply this in other problems, always check for matching angles first before examining side lengths or proportions.
Two triangles $\triangle RST$ and $\triangle XYZ$ are shown in the plane. Angle markings show $\angle R$ and $\angle X$ each have a single arc, and $\angle S$ and $\angle Y$ each have a double arc. No side lengths are given, and the diagram is not drawn to scale.
Which claim about side lengths must be true?
$\dfrac{RS}{ST} = \dfrac{XZ}{YZ}$ because $T$ corresponds to $Z$.
$\dfrac{RS}{XY} = \dfrac{ST}{YZ}$ because the triangles are similar by AA.
$RS = XY$ because $\angle R \cong \angle X$ and $\angle S \cong \angle Y$.
$RT = XZ$ because the triangles have two equal angles.
Explanation
The AA criterion is a key method for proving triangle similarity. If two angles of one triangle are congruent to two angles of another triangle, the triangles are similar. In this diagram, angle R is marked congruent to angle X with a single arc, and angle S is marked congruent to angle Y with a double arc. Therefore, by the AA similarity criterion, triangle RST is similar to triangle XYZ. Similar triangles have corresponding sides that are proportional, meaning their ratios are equal, but the sides themselves are not necessarily equal in length. A common misconception is to assume equal side lengths from matching angles alone, but proportionality is the correct relationship without size information. To apply this in other problems, always check for matching angles first before examining side lengths or proportions.
