Thermometer precision is determined by the spacing between its temperature markings. When a thermometer has gradations marked at 1°C intervals, temperatures can be read and estimated to the nearest 0.1°C by interpolating between the marked lines. This represents the appropriate precision level for such an instrument. Recording to 0.01°C would claim false precision beyond what the instrument's gradations allow, while reading only to 1°C wouldn't utilize the instrument's full measurement capability.

Precision is determined by the number of significant figures or decimal places in a measurement, with more decimal places indicating greater precision. The measurement 0.1234 kg has four decimal places, making it the most precise among the options. This indicates the measuring instrument can detect differences as small as 0.0001 kg. Measurements like 0.12 kg or 0.1 kg have fewer decimal places and therefore represent lower precision.

The graduated cylinder has 0.2 mL markings as its smallest division, so measurements should be estimated one digit beyond that (0.02 mL precision). With the meniscus at the 9.8 mL mark, the measurement should be recorded as 9.80 mL to show the appropriate precision level. Choice C correctly includes the estimated digit in the hundredths place. Choice D (9.8 mL) shows insufficient precision for this instrument's capabilities.

Stopwatch Y records to the nearest 0.01 s (hundredths place) while Stopwatch X only records to 0.1 s (tenths place). Precision refers to the smallest increment an instrument can measure, determined by the number of decimal places in the readings. Stopwatch Y provides measurements with more decimal places, indicating greater precision. Choice B correctly identifies that Stopwatch Y is more precise due to its finer resolution, regardless of how close the average values are.

The metric ruler has millimeter marks as its smallest division (1 mm = 0.1 cm), so measurements should be recorded one estimated digit beyond that smallest division. With 1 mm markings, the measurement should be estimated to the nearest 0.01 cm (hundredths place). Choice C correctly identifies 0.01 cm as the appropriate precision level. The rod end falling halfway between 12.3 and 12.4 cm would be recorded as approximately 12.35 cm.

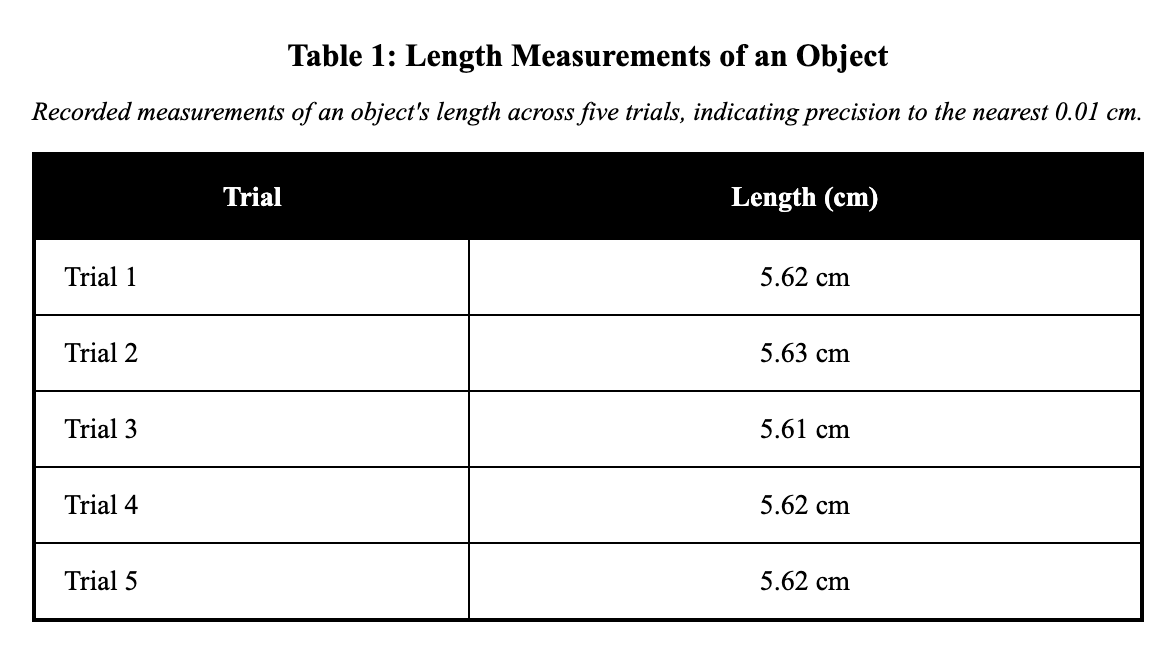

All recorded measurements show two decimal places (5.62, 5.63, etc.), indicating the instrument supports readings to the nearest 0.01 cm. For instruments with 0.01 cm precision, the smallest marked division is typically 0.1 cm (1 mm), allowing estimation to the hundredths place. Choice B correctly identifies 0.1 cm as the likely smallest marked division. The consistent decimal places in all trials confirm this precision level.

Digital instruments report to their smallest displayed place value, which indicates their precision. The balance display shows 18.273 g with three decimal places, meaning it can measure to the nearest 0.001 g (thousandths place). Choice C correctly identifies this precision level. Unlike analog instruments where estimation is involved, digital displays directly indicate their resolution through the number of decimal places shown.

The digital balance displays to 0.01 g (hundredths place) while the triple-beam balance reads to 0.1 g (tenths place). Digital displays indicate their precision through the number of decimal places shown, with 123.37 g showing greater resolution. Choice B correctly identifies the digital reading as most precise. The triple-beam balance's mechanical nature limits it to 0.1 g precision despite measuring approximately the same mass.

The phone timer displays 1.467 s with three decimal places, indicating it can measure to the nearest 0.001 s (millisecond precision). Digital instruments show their resolution through the smallest displayed place value. Choice C correctly identifies this precision level. The consistent display of three decimal places demonstrates the timer's capability to resolve time differences of one millisecond.

Thermometer B has smaller scale divisions (0.2°C) compared to Thermometer A (1°C), allowing for more precise temperature measurements. The smallest marked division determines an instrument's precision, with finer graduations enabling more accurate readings. Choice C correctly identifies that Thermometer B provides greater precision due to its smaller scale divisions. Both measure the same bath, but the instrument with finer markings offers better resolution.
